How to Make Sheet Metal Brackets: Design & Fabrication Guide

Bracket is a middle part between two items to fix one with another. Bracket provides support to connect two parts. There are various metal bracket shapes and sizes depending on the requirements. One of the economical and convenient ways to make brackets is sheet metal fabrication. You need to know some basic about sheet metal brackets before finding a service provider for sheet metal prototyping or other related services. This article will guide you about the designs, types, tips and materials for sheet metal brackets.

What Are Sheet Metal Brackets?

Sheet metal brackets are objects made from a flat piece of sheet metal. These are cut, bent, and formed to provide structural support, connecting parts, and placing objects at one place. They provide a stable mounting point for large structures.

How Do Brackets Work?

Brackets connect physically two separate parts like shelf and wall and support structure by providing additional strength. They distribute loads and stress from the object to the mounting surface. Brackets can align parts and create a fixed point for large assemblies.

Pros and Cons

Brackets have many advantages like

• Sheet metal brackets are cost-effective for larger structures

• They have high strength and can withstand significant load

• These are customizable and have various metal bracket shapes like L, U, or Z shapes.

• Sheet metal brackets are lightweight

However, there are few limitations for sheet metal brackets

• Some versatile and complex can be difficult to make

• These are prone to rust and corrosion

• They need other hardware like screws or rivets, to be installed.

Types of Metal Brackets

The various sheet metal bracket types have their own function and purpose like some connects perpendicular surface or some wraps around the object to hold it in place. A brief description of the sheet metal bracket types is as follows:

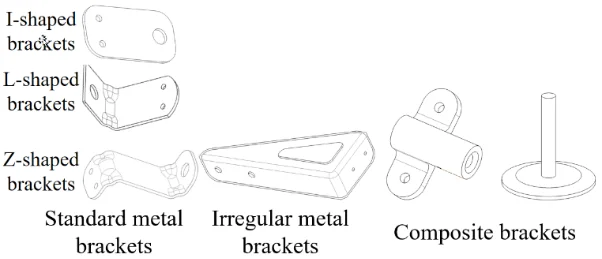

Common Metal Bracket Types by Shape

Common types of metal brackets based on their shape are discussed below:

1. L Brackets

The L-shaped bracket is used to join two perpendicular surfaces. It is common for supporting shelves and reinforcing corners.

2. U Brackets

The U-shaped bracket is wrapped around the object. It is often used for securing pipes or cables.

3. Z Brackets

This bracket has bends in the shape of a "Z". It is used for connecting different components or offsetting them and is common in installing building facades.

4. T Brackets

The T-shaped bracket connects three surfaces. They provide a sturdy foundation for a structure.

5. Flat Bracket / Strap

A plain flat bracket is used for connecting two components in a straight line or providing reinforcement. While a curved bracket is specifically designed to wrap around or conform to a rounded object.

6. Corner Brace / Gusset Bracket

A corner bracket reinforces a corner or joint and provides extra stability. It is available in different shapes like triangular, rectangular, or trapezoidal, to distribute force and load
